Genasun GV5 - 5A Solar MPPT Controller for Embedded / OEM Applications

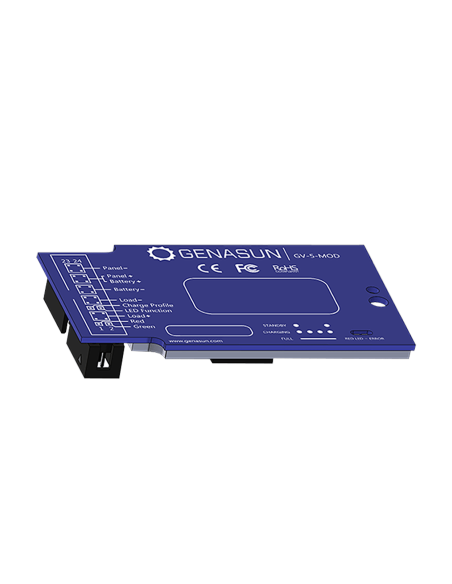

The GV-5-MOD is the first MPPT controller available as an easy-to-install PCB with a plug & play pin-header connector. It is light, compact, and packs advanced MPPT tracking technology. Compatible with PV panels up to 65W for charging 12V batteries (Lead or Lithium) up to 5A with 99.85% peak efficiency. It will extract 10-30% more power from a panel than a PWM controller, and delivers more power to your battery in sub-optimal conditions.
The load output allows the GV-5-MOD to protect the battery from over discharge (loads up to 5A) and has auto-resetting short-circuit and reverse-polarity protection. The GV-5-MOD has internal LED indicators and comes with a polarized, shrouded connector for error-proof installation.
Its ceramic capacitors will never wear out, and it ships with an industry-leading 10 year warranty. Available for LiFePO4 (3S or 4S), LiCo/LiMn/LiNi (3S or 4S), or custom battery voltages.
Get the Ceramic Edge. Electrolytic-Free with 10 Year Warranty
Genasun’s Ceramic controllers set a new benchmark for reliability. Traditional controllers have components filled with fluid electrolytes that boil off over time, causing system failure. Genasun Solid Ceramic controllers have no fluid. They don’t wear out in the heat. Backed by an industry leading 10 year warranty, these controllers take reliability to a new level.
Computer controlled, 4-Stage battery charging
Precise computer controlled charging ensures the optimal charge cycle for your battery. This increases the battery life and maximizes battery capacity.
- The original Ceramic Drive solar charge controller.
- 99.85% Peak Efficiency
- Electrolytic-Free, Ceramic Capacitors
- Doesn't wear out from heat
- High-Speed MPPT
THIS ITEM IS TO SPECIAL ORDER ONLY - 14 DAY LEAD TIME
LITHIUM WARNING: Take care when working with lithium systems. Genasun Li controllers use the CC/CV charging profile indicated on the controller. Check the specifications of the battery pack to ensure that the CV voltage is correct. Further check that the power supplied by the solar array and Genasun controller is within the battery specified design limits.
LITHIUM BMS WARNING: Genasun recommends using a lithium battery with a Battery Management System (BMS) capable of disconnecting the solar charge controller in the event that any cell in the pack is outside of its rated temperature, current, or voltage range. Failure to do so may result in property damage, injury or death. Genasun highly recommends the use of a BMS with cell balancing. Cell balancing is mandatory for lithium-iron phosphate systems.
