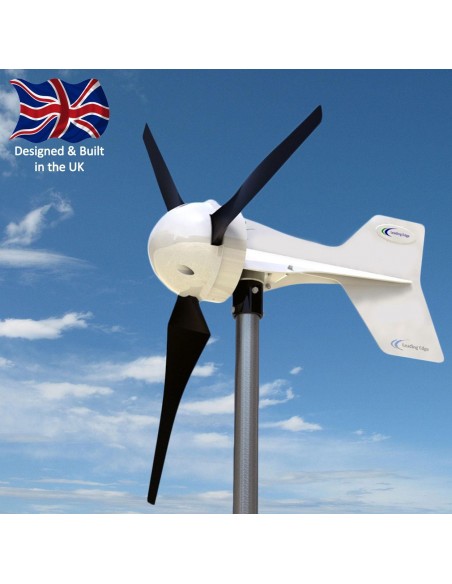

Leading Edge LE300 Wind Generator, 300Wp

Leading Edge LE300 Wind Generator, 300Wp

£849.00

Tax excluded - Please check lead time before placing order

Compact, reliable and powerful.
Easy to install.
Whisper quiet blade design.
Made in the UK with 5 year manufacturing warranty.

Voltage

12 V
24 V
48 V

Version

Standard
Marine

Description

Built in the UK to last for many years, the tough little Leading Edge LE300 wind turbine has become very popular with boat owners due to the fact that it outperforms other similar-sized turbines. Suitable for marine and inland use, the LE300 now carries a 5 year warranty.

Rotor Diameter: 1 metre
Rotor Type: 3-Blade upwind
Blade Material: Glass Reinforced, UV resistant Nylon
Rated Output: 85watts @ 8m/s (18mph)
Peak Output: 300watts
Cut-in speed: 3m/s (6.7mph)
Weight: 5.5Kg
Generator Type: 3-Phase Brushless NIB rotor PMA
Output voltage: 12 or 24V
Lifetime & Servicing: 20 years. Annual inspection recommended
Warranty: 5 years

Product Details

Rated Output - Watts peak (Wp): 300 Wp
Weight: 6 kg
Warranty: 5 years

Reference EDC-LE-LE300L

Attachments

LE300 Wind Turbine Datasheet

Download (715.49KB)

LE300 Wind Turbine Manual

Download (1.97MB)

LE300 Marine Datasheet

Download (769.13KB)
