MC4 Solar PV Connectors, Male
MC4 Solar PV Connectors, Staubli
MC4 Solar PV Connectors, Male
MC4 Solar PV Connectors, Staubli

MC4 Solar PV Connectors, Male

£2.75
Tax excluded - Please check lead time before placing order
  • MC4 Solar PV Connectors
  • Genuine Staubli MC4 Connectors
  • Suitable for 4mm2 or 6mm2 solar cable.
  • Industry standard solar connectors
  • IP65 Rated

Description

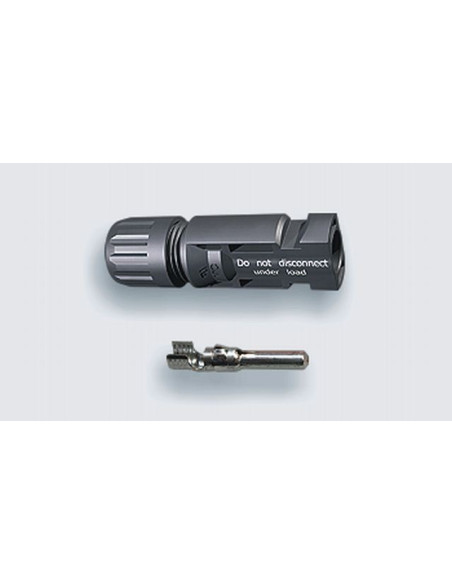

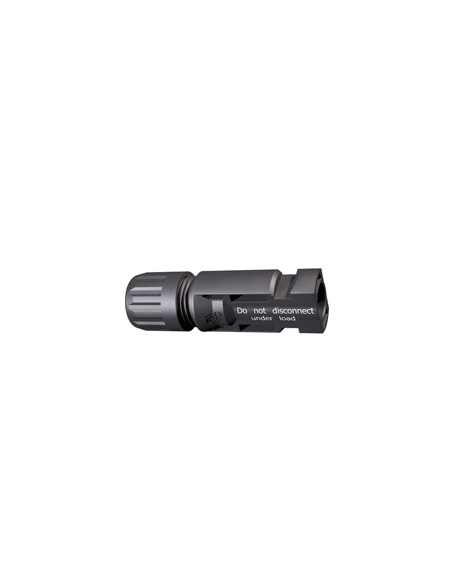

Stuabli MC4 Connectors - Male

MC4 solar pv connectors have become the industry standard for 95% of solar pv modules.

Staubli are the original manufacturers - these are not some sub-standard cheap copy (popular on Ebay). These connectors have excellent long-term stability, which ensures consistently low performance loss throughout the entire service life of the connector.Suitable for assembly with cable cross-sections of 4 and 6 mm²

  • Snap-in lock - (Locking by safety lock clip part # PV-SSH4).
  • Rated current: 39 A (for 4 and 6mm2 cable)
  • Rated voltage: 1000 V
  • IP Rating: IP65 / IP68 when mated (1h / 1min)
  • Cross section: 4 - 6 mm²
  • Outer diameter cable (dA): 5,5 - 9 mm

'MC4' crimp tools are required to crimp these connectors on to bare cables.

Available in bags of 1, 10 or 20 connectors.

Product Details

EDC-MC4-MALE
