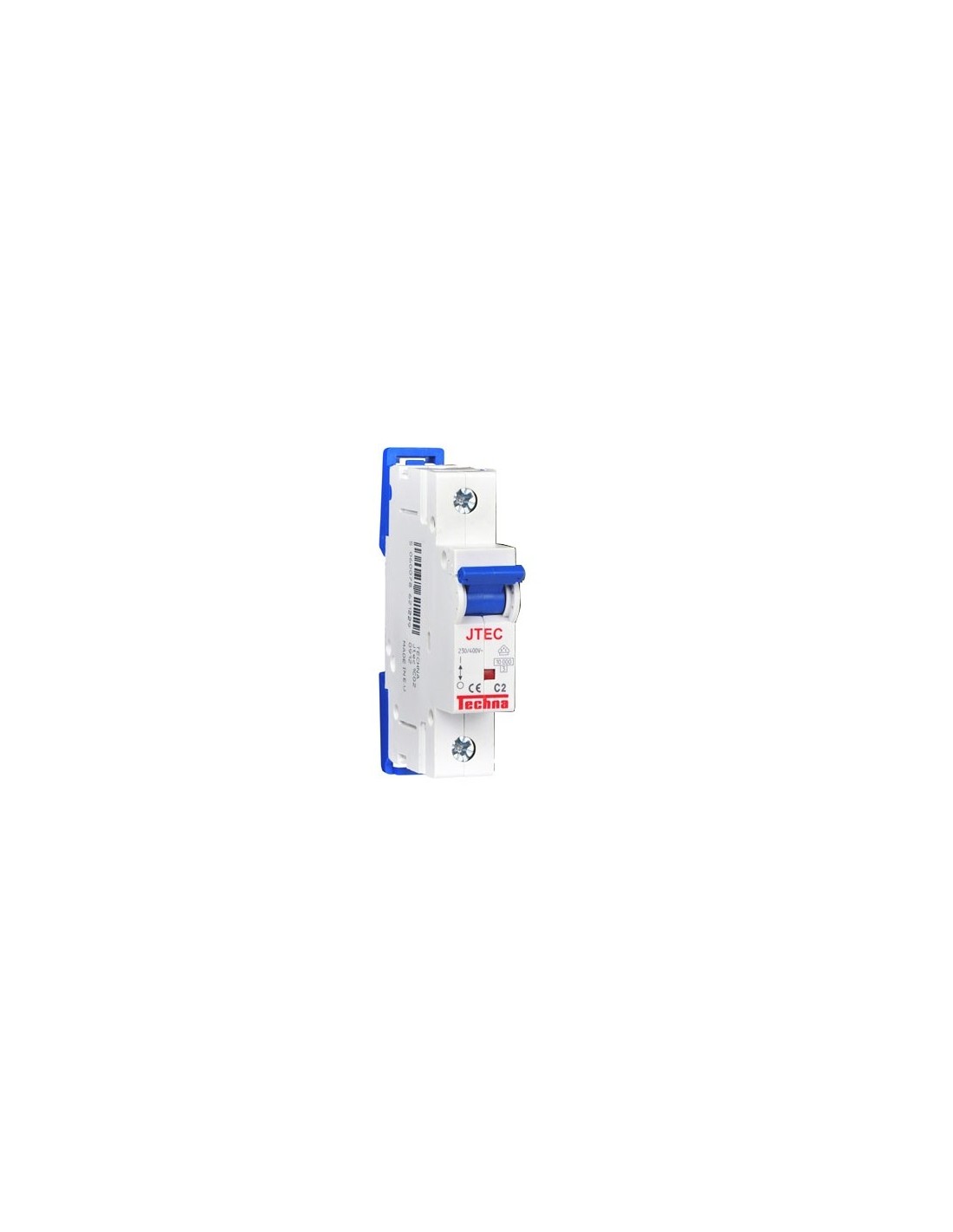

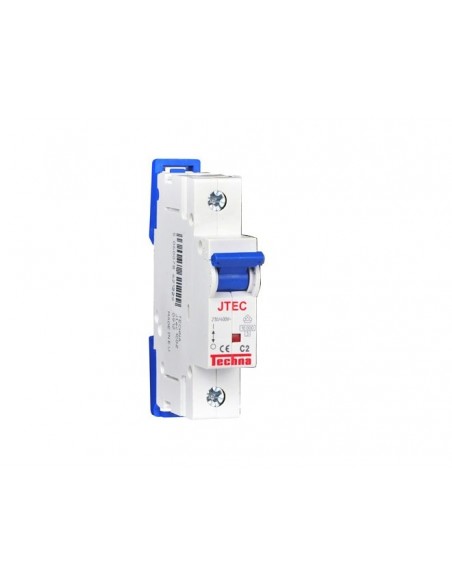

JTEC Single Pole MCB Circuit Breaker 6A to 63A, 10kA

[we are currently experiencing stocking problems, please ensure you contact to check lead time before placing an order]

JTEC miniature circuit breakers (MCB) are rated to 60Vdc and are ideal for use in low voltage dc battery, solar and wind energy systems. These devices offer a neat & convenient solution for over-current or short circuit protection, as well as for circuit isolation.

Single pole MCBs are often used for DC loads such as 12/24 volt DC lighting. They are designed to mount onto DIN rail, ideally in a 'distribution' box. We don't recommend MCBs under 6A as they have a higher resistance.

• Trip Curve: C
• 1-way DIN rail mounting.
• 60Vdc Maximum Voltage.
• 10kA Breaking Capacity.
• Cable sizes up to 35mm2 without using blade terminals.
